In the world of surface
science, the ability to control wettability is the essential for
developing applications from self-cleaning materials to advanced
biomedical devices.
While hydrophobicity and superhydrophobicity often steal the
spotlight1, its less famous counterpart,
superhydrophilicity, deserves some attention. Thus, our objective
this month is to explain how to make a superhydrophilic surface.
Understanding Superhydrophilicity
A surface is considered
superhydrophilic when a water droplet spreads completely upon
contact, exhibiting a contact angle approaching 0 degrees. This
extreme wettability is driven by a strong affinity between the
surface and water molecules, a stark contrast to the low surface
energy and minimal interaction characteristic of hydrophobic
surfaces. At its core, achieving superhydrophilicity involves
increasing surface energy and creating specific surface structures
that promote water spreading.

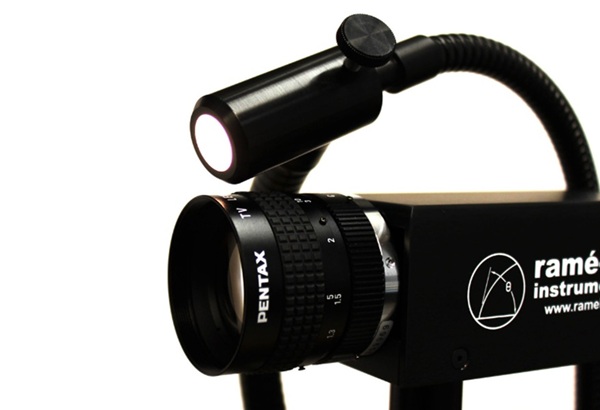

ramé-hart Optical Overhead
Imaging Kit p/n 100-31
The Twin Pillars of
Superhydrophilicity: Chemistry and Topography
The design of a
superhydrophilic surface hinges on two primary factors, often acting
in concert:
- Chemical Composition (High
Surface Energy): The most direct route to hydrophilicity is
to employ materials with intrinsically high surface energy.
Surfaces rich in polar functional groups (e.g., hydroxyl (-OH),
carboxyl (-COOH), amine (-NH2), sulfonate (-SO3H)) readily form
hydrogen bonds with water molecules, facilitating spreading.
Metal oxides, particularly those containing transition metals,
are prime examples. Their surface atoms often possess dangling
bonds or are readily hydroxylated in the presence of water,
leading to strong interactions.
- Surface Topography (Wenzel
and Cassie-Baxter Regimes):
While chemical composition sets the inherent wettability,
surface roughness plays a critical role in amplifying or
diminishing this effect.
- Wenzel State: For
inherently hydrophilic surfaces, increasing roughness
generally enhances superhydrophilicity.
In the Wenzel
state, water penetrates the surface asperities, maximizing
the contact area between the liquid and the solid.
This increased contact area with a high-surface-energy
material drives the contact angle even closer to zero.
Imagine a sponge: its porous structure allows water to be
rapidly absorbed and spread throughout.
- Cassie-Baxter State
(Transition to Hydrophobicity if not carefully controlled):
While primarily associated with superhydrophobicity
(trapping air pockets), it's crucial to understand its
implications for hydrophilic surfaces. If the topography is
such that air pockets are trapped beneath the water droplet,
even on a chemically hydrophilic surface, the effective
contact area with the solid is reduced, potentially
hindering complete spreading. Therefore, for
superhydrophilicity, the aim is to avoid air trapping
and encourage full wetting of the surface features.
General Guidance for Designing
and Making a Superhydrophilic Surface:
The job of creating a
superhydrophilic surface typically involves a combination of
material selection and surface modification techniques:
- Material Selection:
- Inherent Hydrophilicity:
Begin with materials known for their high surface energy and
ability to form strong interactions with water. Common
choices include:
- Metal Oxides:
Titanium dioxide, zinc oxide, silicon dioxide, aluminum
oxide, tungsten oxide.
Many of these,
particularly,
exhibit photocatalytic activity, which can further
enhance hydrophilicity under UV irradiation
(photo-induced superhydrophilicity).
-
Hydrophilic Polymers:
Polymers functionalized with numerous polar groups
(e.g., polyvinyl alcohol, polyacrylic acid, some
hydrogels).
- Glass and Ceramics:
Often inherently hydrophilic due to their silanol
groups.
- Surface Modification
Strategies:
- Chemical Treatments:
- Acid/Base
Treatment: Etching with strong acids or bases can
introduce hydroxyl groups and increase surface
roughness. For
example, treating silicon wafers with piranha solution
creates a highly hydroxylated and hydrophilic surface.
- UV/Ozone Treatment:
Exposure to UV light in the presence of ozone can
effectively remove organic contaminants and create polar
functional groups on many surfaces, especially polymers
and some metal oxides.
This is a common method for rendering surfaces
superhydrophilic post-fabrication.
- Plasma Treatment:
Using oxygen plasma can introduce oxygen-containing
functional groups (hydroxyl, carbonyl) onto polymer
surfaces, significantly increasing their surface energy
and wettability.
-
Grafting Hydrophilic Polymers:
"Grafting from" or "grafting to" techniques can attach
hydrophilic polymer chains (e.g., polyethylene glycol,
poly(N-isopropylacrylamide)) to a surface, creating a
brush-like layer that is highly wettable.
- Topographical
Structuring:
- Nanostructuring/Microstructuring:
Creating intricate surface patterns at the nano- or
micro-scale is crucial for achieving extreme wettability
in the Wenzel state. Techniques include:
-
Anodization:
For metals like aluminum or titanium, anodization
can create highly ordered nanoporous or nanotubular
structures that enhance hydrophilicity.
- Etching
(Chemical or Plasma):
Selective etching can create rough, hierarchical
structures.
For
instance, etching silicon can produce arrays of
silicon nanowires or micropillars.
-
Template-assisted Synthesis:
Using templates (e.g., colloidal spheres, porous
membranes) to guide the deposition or growth of
materials can create highly ordered and rough
surfaces.
- Coaxial
Electrospinning:
Can produce nanofiber mats with high surface area
and interconnected porosity, leading to
superhydrophilicity.2
-
Laser Ablation:
Precisely controlled laser pulses can create
micro/nano patterns on various materials,
influencing their wettability.
- Synergistic Approaches
(Combining Chemistry and Topography):
The most robust
superhydrophilic surfaces often leverage both chemical and
topographical modifications.
For example, a rough
TiO
surface (created via
anodization or sol-gel deposition) whose intrinsic
hydrophilicity is further enhanced by UV irradiation exhibits
stable and potent superhydrophilicity.
The rough texture maximizes the effective contact area, while
the photo-induced effect maintains a high surface energy.
Real-World Examples of
Superhydrophilic Surfaces:
-
Self-Cleaning Surfaces (Photocatalytic Titanium Dioxide):
Perhaps the most prominent example.
Windows, building
facades, and even road signs coated with
TiO
become
superhydrophilic under UV light.
Rainwater then spreads
evenly across the surface, washing away dirt and grime rather
than beading up and leaving streaks.
This "wash-off" effect is a direct consequence of the surface's
extreme wettability.
- Anti-Fogging Surfaces:
Superhydrophilic coatings on car windshields, bathroom mirrors,
and optical lenses prevent the formation of discrete water
droplets (fog) by causing water vapor to condense as a uniform,
transparent film. This maintains optical clarity, crucial for
safety and functionality.
- Biomedical Devices:
Superhydrophilic coatings are used on medical implants (e.g.,
catheters, stents) to improve biocompatibility and reduce
protein adsorption and bacterial adhesion.
The highly wettable surface discourages the initial adhesion of
biomolecules and cells, which is often the first step in
biofouling.
- Microfluidics and
Lab-on-a-Chip Devices:
Superhydrophilic channels are essential for the precise
manipulation and transport of aqueous solutions without the need
for external pumps.
The capillary action driven by the superhydrophilic walls
efficiently wicks liquids through intricate microchannels.
-
Enhanced Oil-Water Separation:
Membranes with superhydrophilic and oleophobic (oil-repelling)
properties are being developed for highly efficient separation
of oil-water mixtures, crucial for environmental remediation and
industrial processes.
The superhydrophilic surface allows water to pass through while
rejecting oil.
-
Water
Harvesting/Collection:
Surfaces designed with specific superhydrophilic patterns can
efficiently collect atmospheric moisture, guiding condensed
water droplets into collection reservoirs, offering a potential
solution for water scarcity in arid regions.
Summary of Considerations for
Design and Fabrication:
- Durability and Stability:
How long will the superhydrophilic property last? Many
photo-induced superhydrophilic surfaces lose their effect in the
dark. Chemical and mechanical stability are crucial for
long-term applications.
- Scalability: Can the
chosen fabrication method be scaled up for industrial
production? Techniques like sputtering, sol-gel deposition, and
large-area plasma treatment are more amenable to large-scale
manufacturing than some lithographic techniques.
- Cost-Effectiveness: The
cost of materials and fabrication processes must be considered
for practical applications.
- Environmental Impact:
Are the materials and processes environmentally friendly?
Creating a superhydrophilic surface
is an elegant interplay of surface chemistry and topography. By
understanding the fundamental principles of surface energy and
wetting, and by judiciously selecting materials and employing
various surface modification techniques, surface sciencists can
design and fabricate surfaces with tailored wettability for a wide
array of real-world applications. The future of superhydrophilic
surfaces holds a lot of promise, with ongoing research pushing the
boundaries of durability, tunability, and novel functionalities.
Notes
1 If you scan our
newsletter
archive, you'll find at least two dozen article on or related to
superhydrophobicity.
2 ramé-hart is also the world's leading producer of
coaxial spinnerets used for coaxial electrospinning, bioprinting,
and other applications. For more information, visit
www.customspinnerets.com.
|
|
Characterizing hydrophilic and
superhydrophilic surfaces can be tricky with traditional contact angle
measurement methods, especially when dealing with very low contact
angles (under 10°). This is where the
ramé-hart Overhead Optical
Imaging Kit p/n 100-31 comes in.
Designed as an add-on for any ramé-hart
instrument running DROPimage Advanced (v2.x or higher), this innovative
kit allows your existing goniometer to measure contact angles using a
powerful overhead method. Instead of relying on a profile view, the
camera captures an image of the three-phase line from directly above the
droplet. The software then calculates the contact angle based on the
droplet's diameter and volume. For best results, we recommend using the
Automated Dispensing System
p/n 100-22 to ensure precise drop volume
control.
Beyond its superior performance on
hydrophilic surfaces, the overhead method offers another significant
advantage: it works seamlessly even when surrounding sample topography
would block the direct line of sight needed for conventional profile
view measurements.
The kit includes everything you need to
get started: an alternate Illuminator Fixture, an Optical Reflector
Fixture, and all necessary hardware and software to measure contact
angles and distances from overhead.
For more product information including
a PDF brochure, pictures, and a video, please visit this
page. And feel free to
contact
us today for a no-obligation quotation for the Overhead Optical
Imaging Kit - or any other ramé-product. |
