Custom Instruments

ramé-hart is a world leader in contact angle goniometers and tensiometers. In addition to our standard models, we are setup to design and build custom instruments for specific applications. About 10% of our sales are for custom solutions. Based on customer-supplied requirements, we can design and build just about any type of fixture, chamber, or support that is used with or integrated into an existing instrument. We can also modify our standard instrument designs to accommodate special requirements.

If you are interested in learning more about having a custom tool built for your application, please contact us with detailed requirements. We will work up a preliminary design proposal and submit it to you with a firm quotation. You will review and approve the design and issue a purchase order. Often we will also require a deposit. We then finalize the design and begin production.

Below are a some of our past custom projects:


Custom Camera Mount with Leveling and Two Axes of Movement


Custom Advanced Chamber with Top-view Window


Custom Automated (software-controlled) Rotating Wafer Support


Custom Contact Angle Goniometer with Large Specimen Stage


High-pressure Chamber Integration: ramé-hart provided the Camera, Illumination, Analysis Software, and Temperature Logger - Chamber provided by Another Vendor

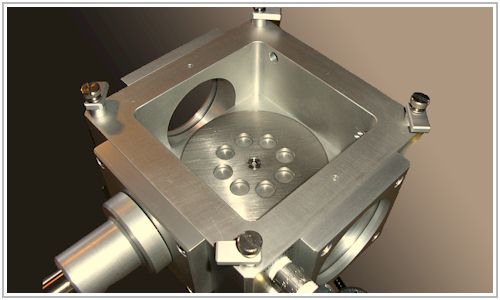

Chamber with Humidity Control and Peltier Specimen Stage

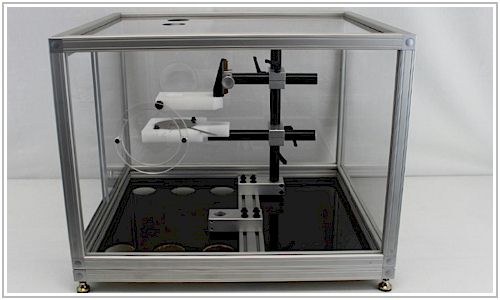

Custom Enclosure with Fixtures for Electrospraying Application

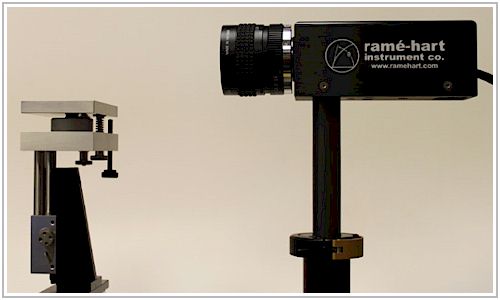

Custom Camera Post with Vertical Adjustment


Environmental Chamber with Precision Adjustable Stage


Custom Camera Mount with 3-axis Motion and Tilt


Dual Camera System with Automated Tilting Base


System with Secondary Camera Overhead


Custom Fixture

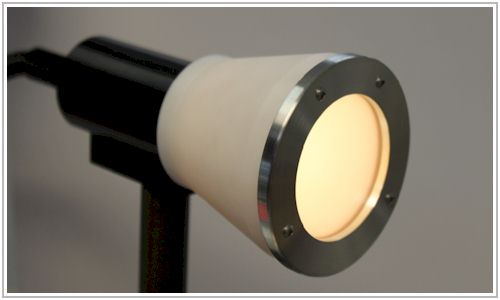

Oversize Illuminator


Extension Arm for Illuminator


Custom Oversized Specimen Stage (6" x 4")


Custom-built Instrument with Plasma Glass Fixture



Custom Chamber with Rotating Support

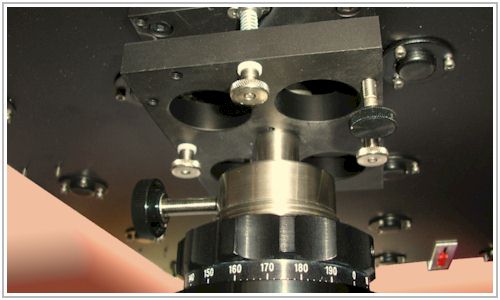

Heavy Duty Leveling Stage for Oversize Support Option


Custom Specimen Support Option


Custom Design with Extension Arms for Camera and Illuminator

r

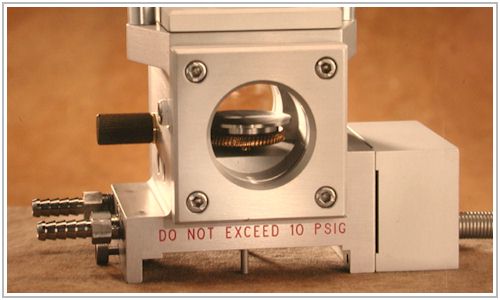

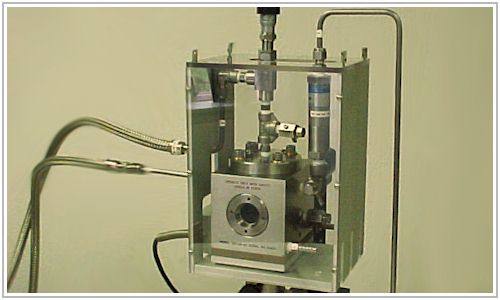

Custom High Pressure Chamber

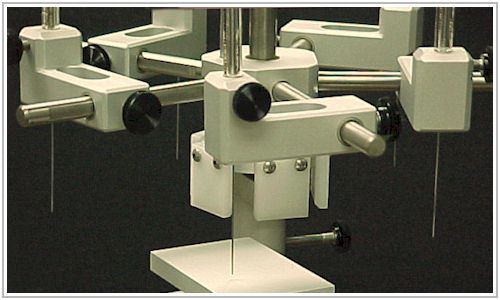

Custom 5-Head Dispensing Fixture


Custom Oversize Environmental Chamber


Custom Lead Frame Support


Custom Support Fixture for Glass Sample

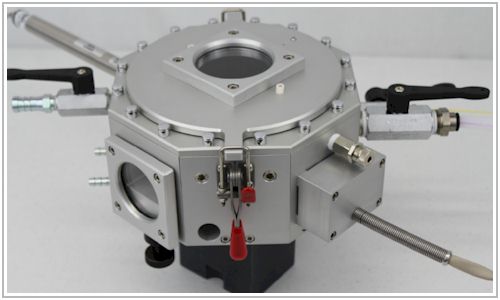

Special Rotating Environmental Chamber

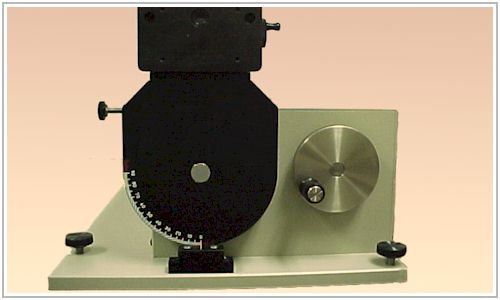

Custom Tilting Fixture


Rotating Support added to Standard Environmental Chamber

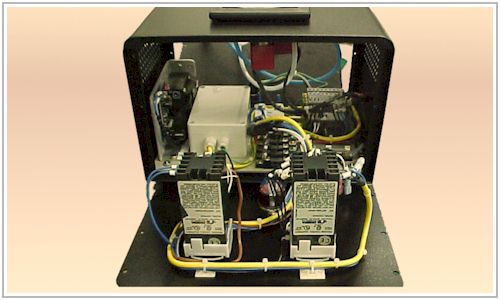

Custom Humidity Controller for Chamber Application


Custom Sliding Support in Oversize Environmental


Special Fixture with 3-Axis Translation


Coaxial Needles (needle inside a needle)
For additional information and custom coaxial and triaxial needles, click here.


For more information or a quotation, please contact us
or call 973-448-0305
